Underwater Tracking System

ROVL USBL System

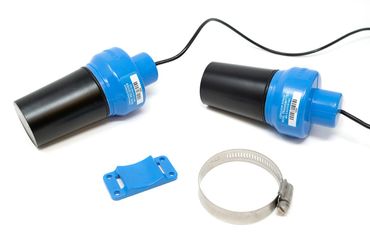

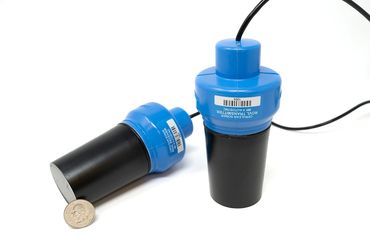

Finally an underwater positioning system that doesn't cost more than the vehicle! The ROV Locator comprises a pinger mounted on the ROV and a USBL receiver module on the surface. Simply sync them up at the start of the dive and track the ROV location in real time on the QGroundControl map display. Serial communication and API available.  $1995 USD

Specifications

[Note: This is a new product and is in BETA testing at this time.  If you have any questions, please ask]


Finally an underwater positioning system that doesn't cost more than the vehicle! The ROV Locator comprises a pinger mounted on the ROV and a USBL receiver module on the surface. Simply sync them up at the start of the dive and track the ROV location in real time on the QGroundControl map display. Serial communication and API available.  This system is designed for low-cost, medium accuracy localization of underwater objects.


  • The system can be used to guide an ROV to an area of interest, either manually or autonomously
  • The system can be used to locate an ROV
  • Other applications are also possible


A complete system requires both a transmitter and a receiver. After calibration, transmitters are paired with specific receivers and should not be interchanged. The system works by syncing the clocks of a transmitter and receiver. The transmitter then sends a sound pulse once per second. The receiver uses time-of-flight to calculate slant range to the transmitter, and phase measurements to determine the arrival angle of the sound pulse.


  • Maximum Depth: 100m
  • Volume, Receiver Unit: 295 ml
  • Mass, Receiver Unit: 278 gm
  • Volume, Transmitter Unit: 295 ml
  • Mass, Transmitter Unit: TBD gm
  • Absolute Maximum Range: 1 km
  • Typical Usable Range: 300m
  • Apparent Yaw/Azimuth resolution*: 1°
  • Apparent Elevation angle resolution*: 1°
  • Slant range measurement resolution *: 0.1 m
  • Slant range error accumulation (typical): 2 m/hr
  • IMU Euler angle accuracy, typical**: 2°
  • Update rate: 1 Hz
  • Ping Frequency: 25 kHz
  • Receiver V-in power: 4.5V to 28V DC <1 Watt
  • Transmitter V-in power: 4.5V to 28V DC <1 Watt

* Resolution does not equal Accuracy  - ** Magnetic errors not included

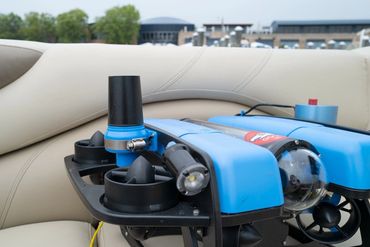

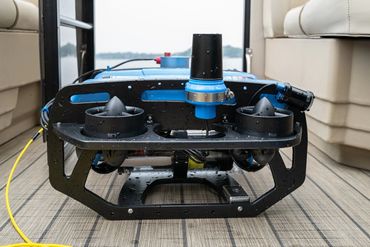

BlueROV2 Tracking Underwater System
